1002109

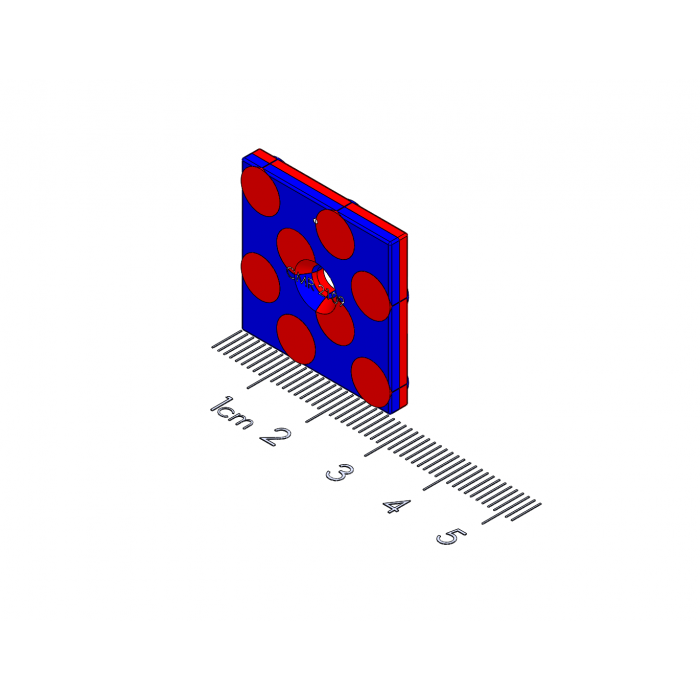

Attachment Polymagnet - short range
This attachment Polymagnet is optimized for high holding force against thin steel, at design gaps from 0 - 0.75 mm.
More Information
SKU 1002109
Meta Description 1002109
Part number 1002109
Pairs with NA
Availability date Released
Base Polarity South
Magnetization orientation Through Thickness
Coating Ni-Cu-Ni
Material NdFeB
Grade N50
Temperature Rating (C) 60
Temperature Grade Standard
Shape type Square
Length (inch) 1
Width (inch) 1
Thickness (inch) 0.125
Mass (oz) 0.5259
Length (mm) 25.4
Width (mm) 25.4
Thickness (mm) 3.175
Mass (g) 14.91
Countersink #6
Magnet Family Attach
Length fractional (inch) 1"
Alignment Functionality 0
Shear resistance 0
Latch Functionality 0
Spring Functionality 0
Torque Functionality 0
Magnet Symmetry 0
magnet_plate_length_range 25.4
Indexing Feature 0
