1000321

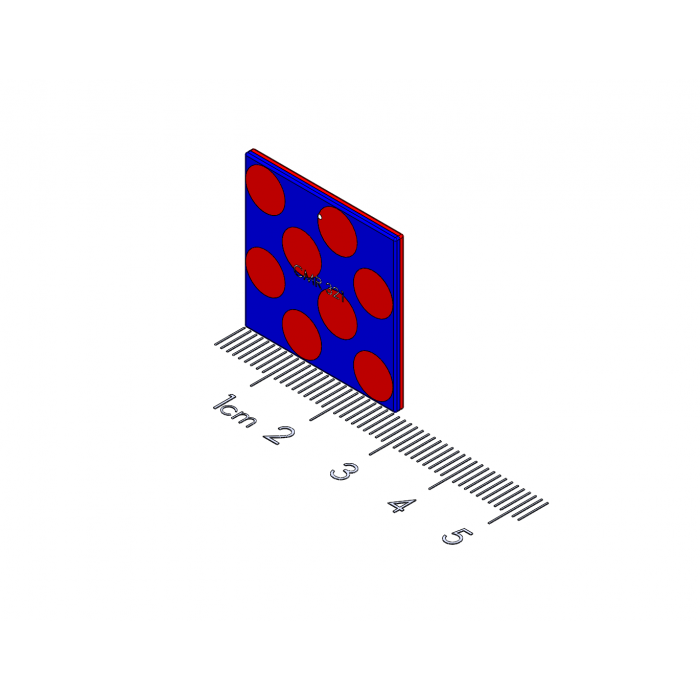

This Polymagnet provides high holding force in magnet-to-magnet and magnet-to-steel applications, at design gaps from 0.75 - 1.5 mm. It also provides enhanced two-dimensional shear resistance in magnet-to magnet-applications.
More Information
SKU: 1000321
Meta Description: 1000321
Part number: 1000321
Pairs with: 1000321
Availability date: Released
Base Polarity: South
Magnetization orientation: Through Thickness
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N40
Temperature Rating (C): 80
Temperature Grade: Standard
Shape type: Square
Length (inch): 1
Width (inch): 1
Thickness (inch): 0.062
Mass (oz): 0.2624
Length (mm): 25.4
Width (mm): 25.4
Thickness (mm): 1.587
Mass (g): 7.44
Countersink: 0
Magnet Family: Attach
Length fractional(inch): '1"
Alignment Functionality: 0
Shear resistance: Two Dimensional Shear
Latch Functionality: 0
Spring Functionality: 0
Torque Functionality: 0
Magnet Symmetry: 180
magnet_plate_length_range: 25.4
Indexing Feature: 0
