1000612

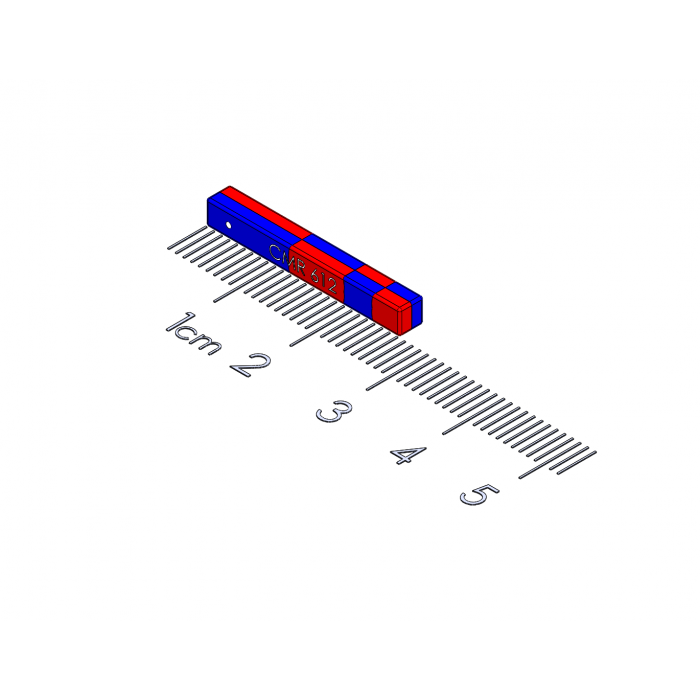

Self-aligning Polymagnet. This magnet pairs with itself.
This Polymagnet provides a self-alignment function as well as shear resistance along its long axis in magnet-to-magnet applications.
More Information
SKU: 1000612
Meta Description: 1000612
Part number: 1000612
Pairs with: 1000612
Availability date: Released
Base Polarity: South
Magnetization orientation: Through Thickness
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N50
Temperature Rating (C): 60
Temperature Grade: Standard
Shape type: Rectangle
Length (inch): 1
Width (inch): 0.125
Thickness (inch): 0.125
Mass (oz): 0.0684
Length (mm): 25.4
Width (mm): 3.175
Thickness (mm): 3.175
Mass (g): 1.94
Countersink: 0
Magnet Family: Align
Length fractional(inch): '1"
Alignment Functionality: One Dimensional Alignment
Shear resistance: One Dimensional Shear
Latch Functionality: 0
Spring Functionality: 0
Torque Functionality: 0
Magnet Symmetry: 0
magnet_plate_length_range: 25.4
Indexing Feature: 0
Pairs well with
1000612
