1000628

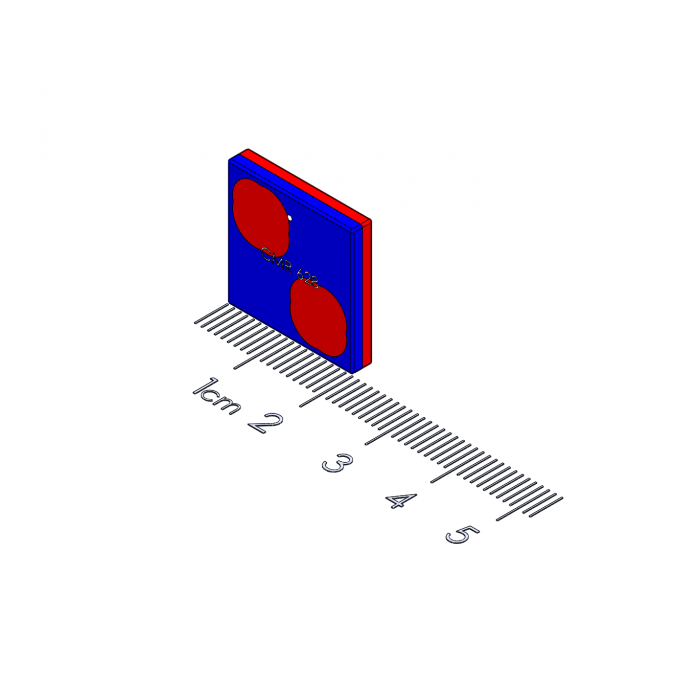

Attach Polymagnet - long range - 2D shear resistance
This magnet pairs with itself and the following:
This Polymagnet provides high holding force in magnet-to-magnet and magnet-to-steel applications, at design gaps greater than 1.5 mm. It also provides enhanced two-dimensional shear resistance in magnet-to-magnet applications.
More Information
SKU: 1000628
Meta Description: 1000628
Part number: 1000628
Pairs with: 1000628
Availability date: Released
Base Polarity: South
Magnetization orientation: Through Thickness
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N50
Temperature Rating (C): 60
Temperature Grade: Standard
Shape type: Square
Length (inch): 0.75
Width (inch): 0.75
Thickness (inch): 0.125
Mass (oz): 0.2984
Length (mm): 19.05
Width (mm): 19.05
Thickness (mm): 3.175
Mass (g): 8.46
Countersink: 0
Magnet Family: Attach
Length fractional (inch): '3/4"
Alignment Functionality: 0
Shear resistance: Two Dimensional Shear
Latch Functionality: 0
Spring Functionality: 0
Torque Functionality: 0
Magnet Symmetry: 180
magnet_plate_length_range: 19.05
Indexing Feature: 0
Pairs well with
1000628
