1001031

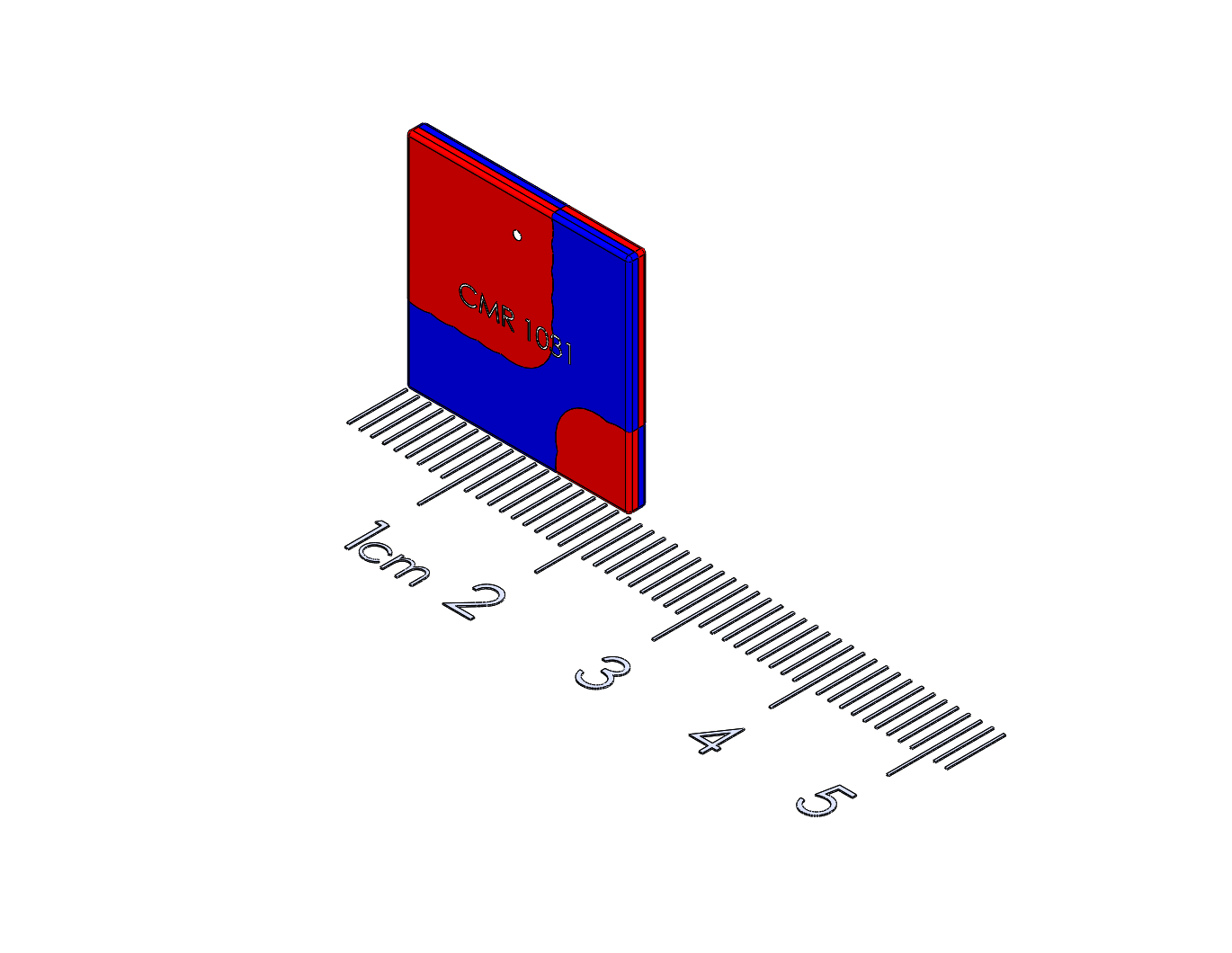

Alignment Polymagnet - 2D
This magnet pairs with itself.
This Polymagnet provides a two-dimensional alignment function as well as shear resistance along its length and width in magnet-to-magnet applications.
More Information
SKU: 1001031
Meta Description: 1001031
Part number : 1001031
Pairs with: 1001031
Availability date: Released
Base Polarity: South
Magnetization orientation: Through Thickness
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N40
Temperature Rating (C): 80
Temperature Grade: Standard
Shape type: Square
Thickness (inch): 0.062
Mass (oz): 0.1474
Thickness (mm): 1.587
Mass (g): 4.18
Countersink: 0
Magnet Family: Align
Shear resistance: Two Dimensional Shear
Latch Functionality: 0
Spring Functionality: 0
Torque Functionality: 0
Magnet Symmetry: 0
Indexing Feature: 0
Pairs well with
1001031
