1001048

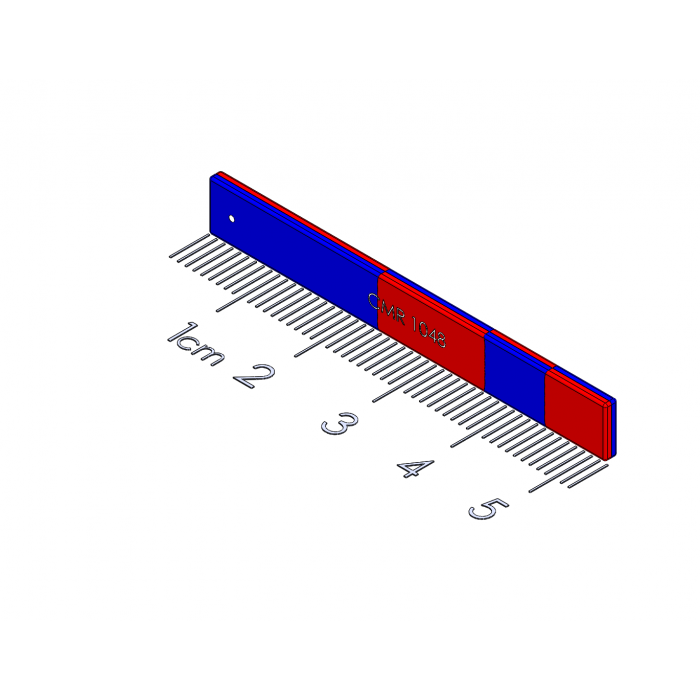

Self aligning Polymagnet
This magnet pairs with itself.
This Polymagnet provides a self alignment function as well as shear resistance along its long axis in magnet to magnet applications.
More Information
SKU: 1001048
Meta Description: 1001048
Part number: 1001048
Pairs with: 1001048
Availability date: Released
Base Polarity: South
Magnetization orientation: Through Thickness
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N50
Temperature Rating (C): 60
Temperature Grade: Standard
Shape type: Rectangle
Length (inch): 2
Width (inch): 0.25
Thickness (inch): 0.063
Mass (oz): 0
Length (mm): 50.8
Width (mm): 6.35
Thickness (mm): 1.59
Mass (g): 0
Countersink: 0
Magnet Family: Align
Length fractional(inch): '2"
Alignment Functionality: One Dimensional Alignment
Shear resistance: One Dimensional Shear
Latch Functionality: 0
Spring Functionality: 0
Torque Functionality: 0
Magnet Symmetry: 0
magnet_plate_length_range: 50.8
Indexing Feature: 0
Pairs well with
1001048
