1001081

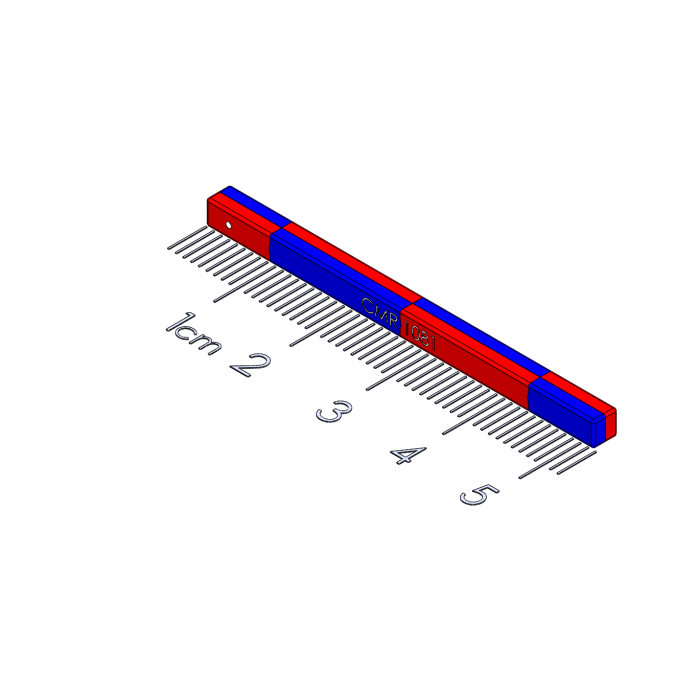

Self-aligning Polymagnet
This magnet pairs with itself.
This Polymagnet provides a self-alignment function as well as shear resistance along its long axis in magnet-to-magnet applications. It is polarity balanced for use in compass applications.
More Information
SKU 1001081
Meta Description 1001081
Part number 1001081
Pairs with 1001081
Availability date Released
Base Polarity South
Magnetization orientation Through Thickness
Coating Ni-Cu-Ni
Material NdFeB
Grade N50
Temperature Rating (C) 60
Temperature Grade Standard
Shape type Rectangle
Length (inch) 2
Width (inch) 0.125
Thickness (inch) 0.125
Mass (oz) 0.133
Length (mm) 50.8
Width (mm) 3.175
Thickness (mm) 3.175
Mass (g) 3.77
Countersink 0
Magnet Family Align
Length fractional (inch) 2"
Alignment Functionality One Dimensional Alignment
Shear resistance One Dimensional Shear
Latch Functionality 0
Spring Functionality 0
Torque Functionality 0
Magnet Symmetry 0
magnet_plate_length_range 50.8
Indexing Feature 0
Pairs well with
1001081
