1001092

SKU: 1001092
Meta Description: 1001092
Part number : 1001092
Pairs with: 1001092
Availability date: Released
Base Polarity: South
Magnetization orientation: Through Thickness
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N50
Temperature Rating (C): 60
Temperature Grade: Standard
Dimensional tolerance: 0.127

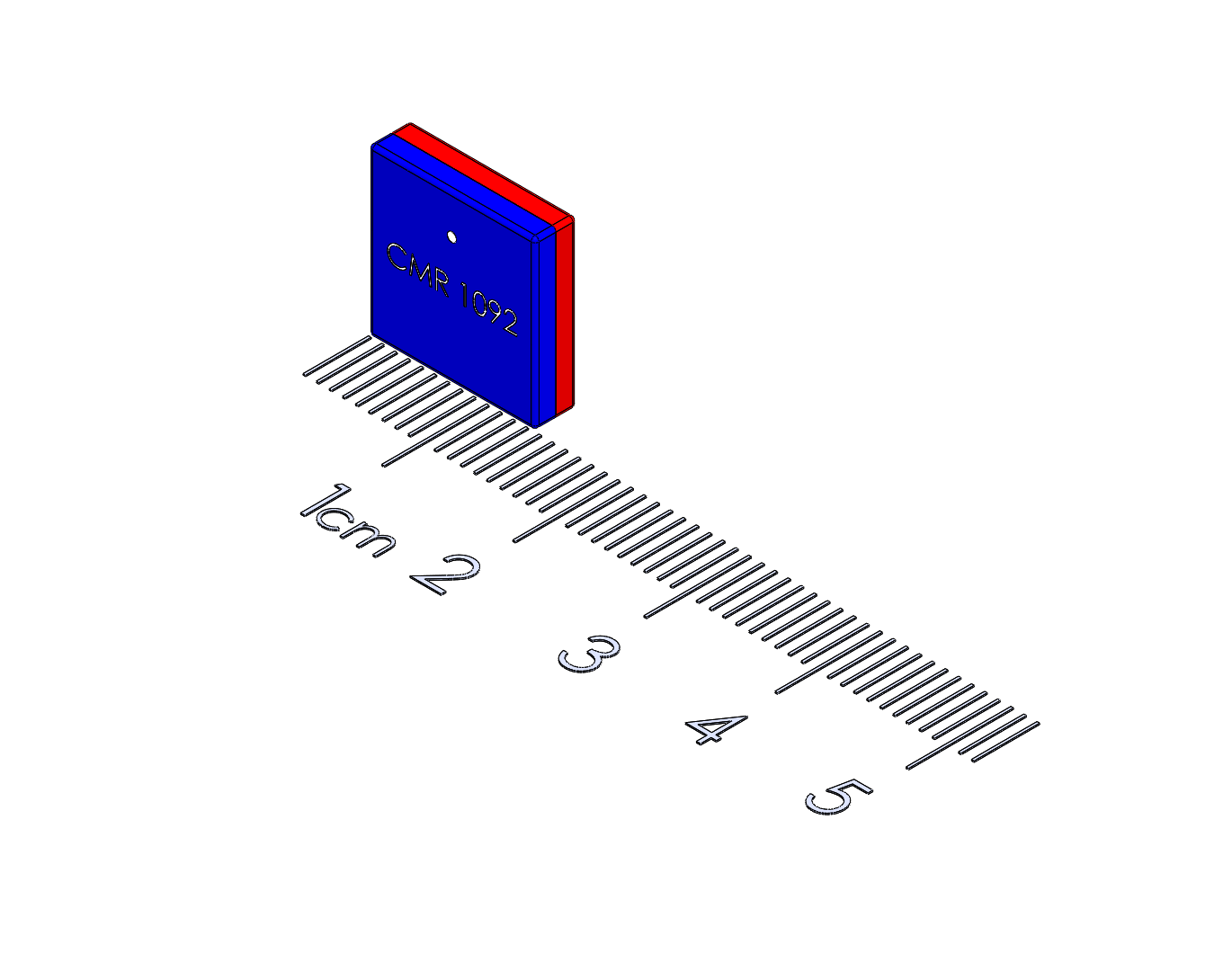

Shape type: Rectangle
Length (inch): 0.5
Width (inch): 0.5
Thickness (inch): 0.125
Outer diameter (inch): 0.5
Mass (oz): 0
Length (mm): 12.7
Width (mm): 12.7
Thickness (mm): 3.175
Outer diameter (mm): 12.7
Mass (g): 0
Countersink: 0
Magnet Family: Conventional
Length fractional (inch): 1/2"
Width fractional (inch): 1/2"
peak force: 31.13
Outer diameter fractional (Inch): 1/2"
Thickness fractional (inch): 1/8"
Shear resistance: 0
Latch Functionality: 0
Spring Functionality: 0
Torque Functionality: 0
Magnet Symmetry: 0
magnet_shipping_weight: 0.05
magnet_plate_thickness_mm 3.175
magnet_plate_width_range: 12.7
magnet_plate_innerdiameter: 1
magnet_disc_od_range: 19.05
magnet_disc_length_range: 1
Indexing Feature: 0
