1001097

SKU: 1001097
Meta Description:1001097
Part number :1001097
Pairs with:1001097
Availability date: Released
Base Polarity: South
Magnetization orientation:Through Thickness
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N50
Temperature Rating (C): 60
Temperature Grade: Standard
Dimension tolerance: 0.127

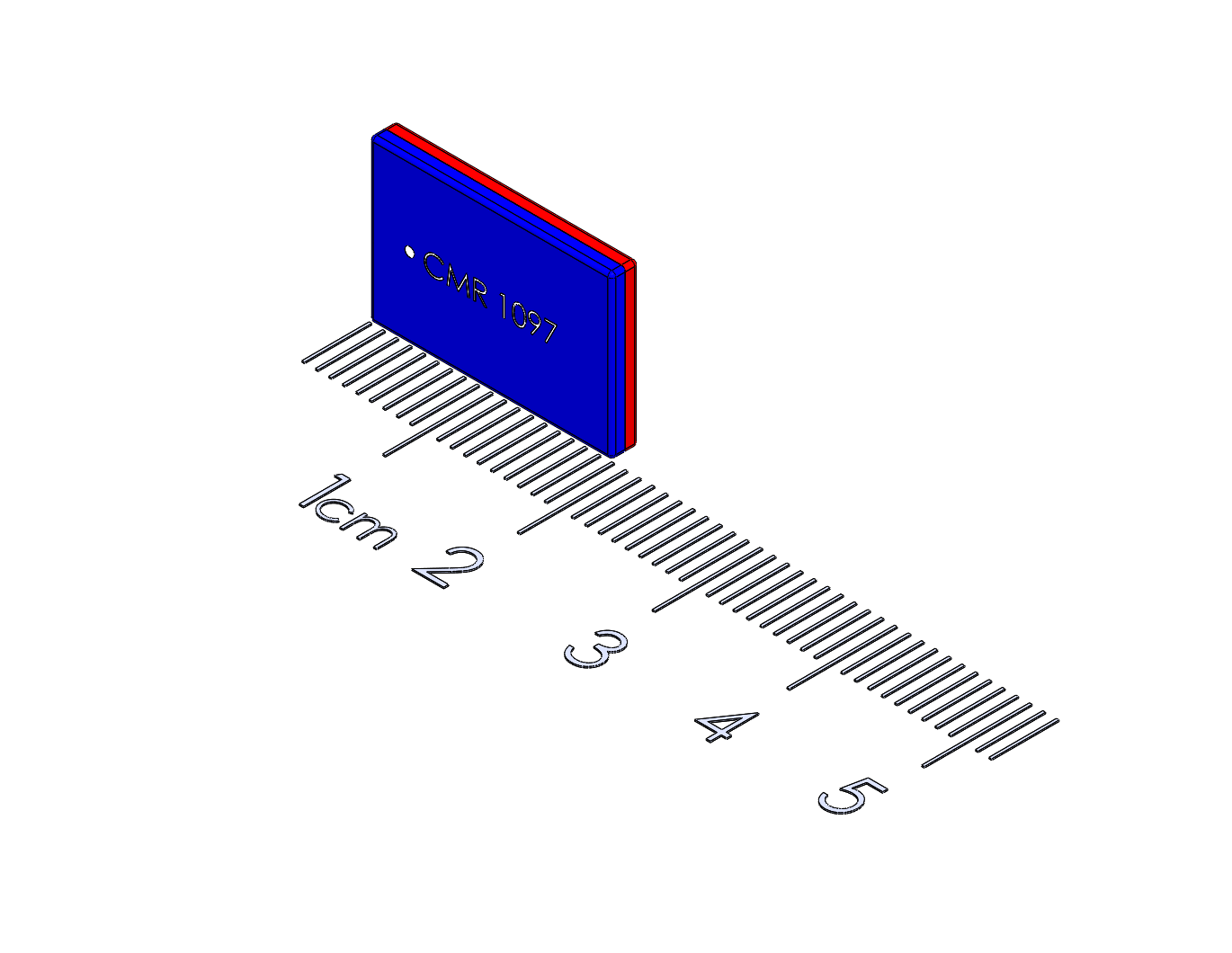

Shape type: Rectangle
Length (inch):0.709
Width (inch): 0.472
Thickness (inch): 0.079
Mass (oz): 0
Length (mm): 18
Width (mm): 12
Thickness (mm): 2
Mass (g): 0
Countersink: 0
Magnet Family: Conventional
Length fractional (inch): 0.079"
Width fractional (inch): 0.472"
peak force: 22.83
Thickness fractional (inch): 0.079"
Shear resistance: 0
Latch Functionality: 0
Spring Functionality: 0
Torque Functionality: 0
Magnet Symmetry: 0
magnet_plate_od_range: 1
magnet_shipping_weight: 0.05
magnet_disc_length_range:1
magnet_plate_length_range: 18
magnet_plate_width_range: 12
magnet_plate_thickness_mm: 2
magnet_plate_inner diameter: 1
Indexing Feature:0
