1001098

SKU: 1001098
Meta Description: 1001098
Part number : 1001098
Pairs with: 1001098
Availability date: Released
Base Polarity: South
Magnetization orientation: Through Thickness
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N50
Temperature Rating (C): 60
Temperature Grade: Standard
Dimension tolerance: 0.127

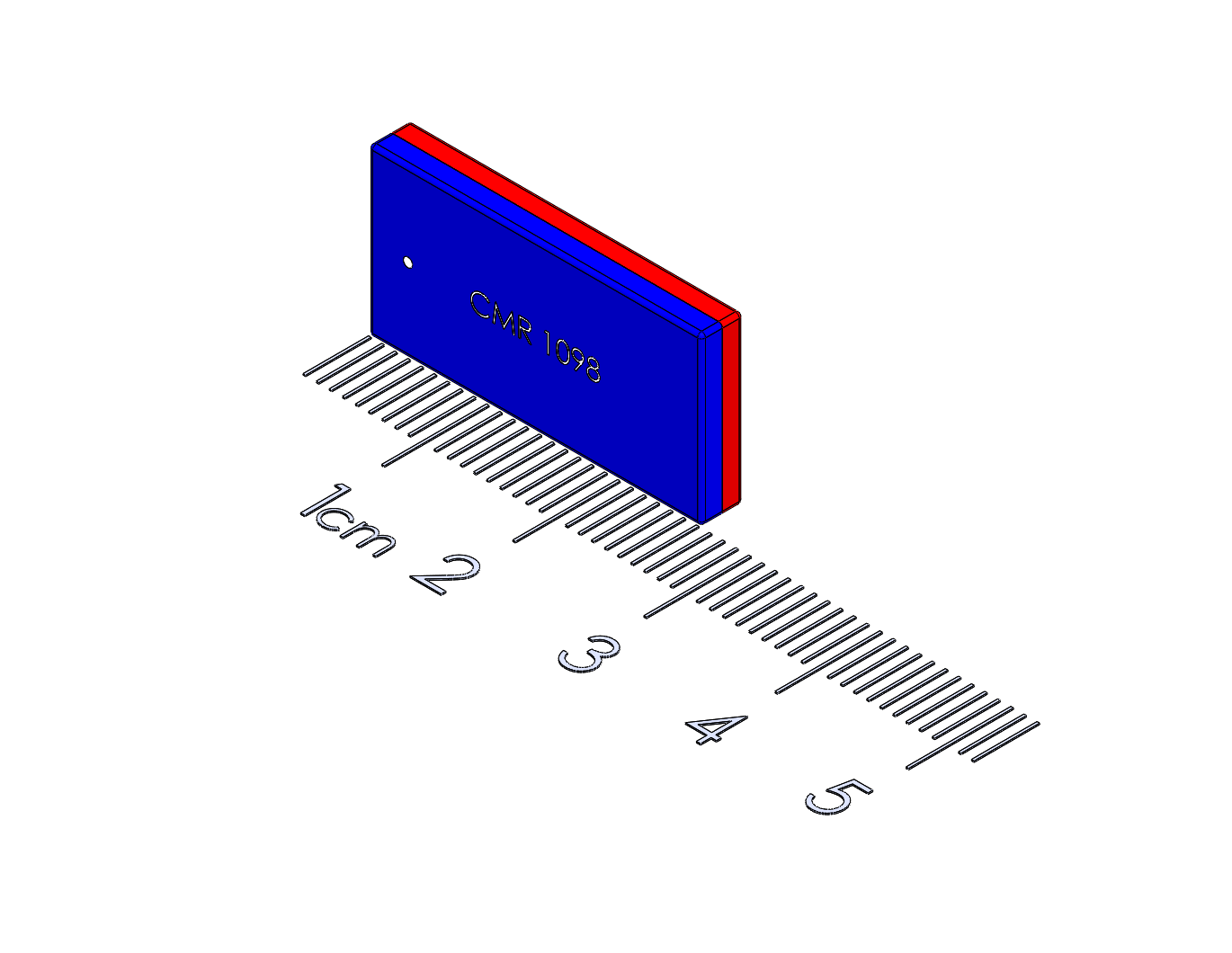

Shape type: Rectangle
Length (inch): 1
Width (inch): 0.5
Thickness (inch): 0.125
Mass (oz):0
Length (mm): 25.4
Width (mm): 12.7
Thickness (mm): 3.175
Mass (g):0
Countersink:0
Magnet Family: Conventional
Length fractional (inch): 1"
Width fractional (inch): 1/2"
peak force: 46.81
Thickness fractional (inch): 1/8"
Shear resistance:0
Latch Functionality:0
Spring Functionality:0
Torque Functionality:0
Magnet Symmetry:0
magnet_disc_od_range: 19.05
magnet_plate_od_range: 1
magnet_shipping_weight: 0.05
magnet_disc_length_range: 1
magnet_plate_length_range: 25.4
magnet_plate_width_range: 12.7
magnet_plate_thickness_mm: 3.175
magnet_plate_inner diameter: 1
Indexing Feature: 0
