1001107

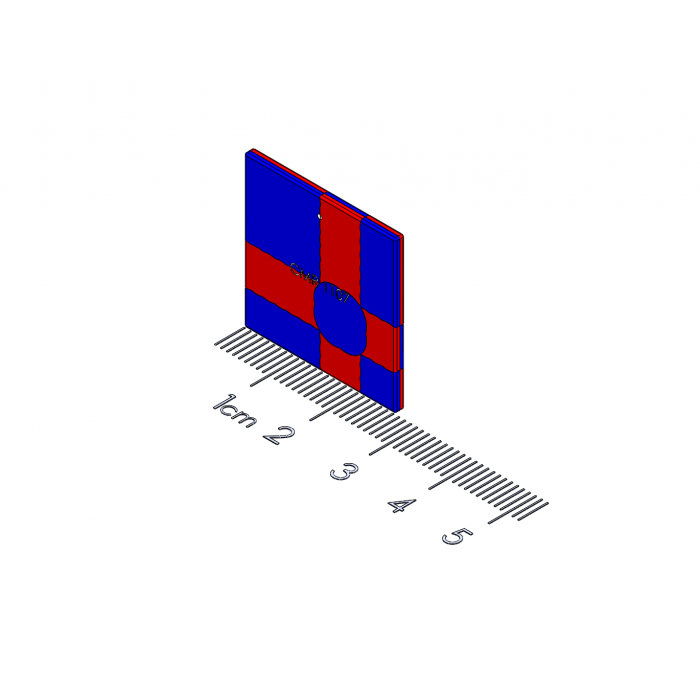

Alignment Polymagnet - 2D
This magnet pairs with itself and the following:
This Polymagnet provides a two-dimensional alignment function as well as shear resistance along its length and width in magnet-to-magnet applications.
More Information
SKU 1001107
Meta Description 1001107
Part number 1001107
Pairs with 1001107
Availability date Released
Base Polarity South
Magnetization orientation Through Thickness
Coating Ni-Cu-Ni
Material NdFeB
Grade N50
Temperature Rating (C) 60
Temperature Grade Standard
Shape type Square
Length (inch) 1
Width (inch) 1
Thickness (inch) 0.062
Mass (oz) 0.2624
Length (mm) 25.4
Width (mm) 25.4
Thickness (mm) 1.587
Mass (g) 7.44
Countersink 0
Magnet Family Align
Length fractional (inch) 1"
Alignment Functionality Two Dimensional Alignment
Shear resistance Two Dimensional Shear
Latch Functionality 0
Spring Functionality 0
Torque Functionality 0
Magnet Symmetry 0
magnet_plate_length_range 25.4
Indexing Feature 0
Pairs well with
1001107
