1001110

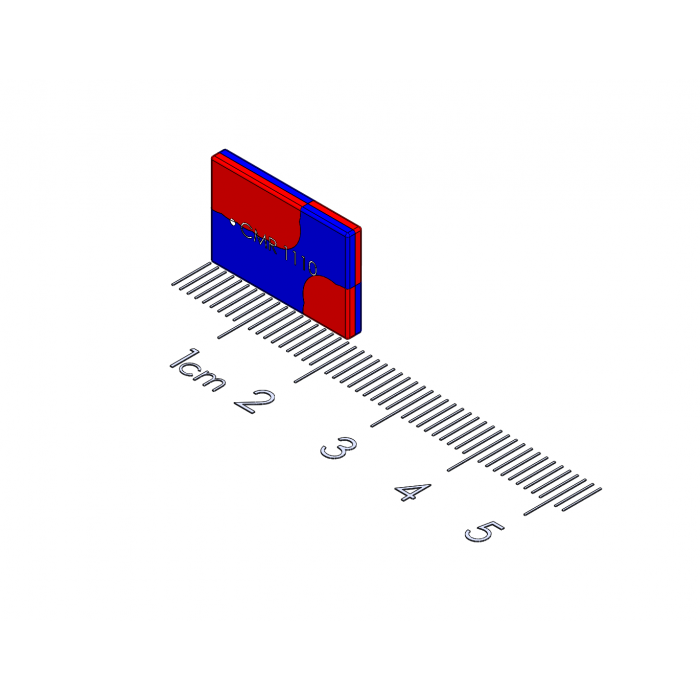

Alignment Polymagnet - 2D
This magnet pairs with itself.
This Polymagnet provides a two-dimensional alignment function as well as shear resistance along its length and width in magnet-to-magnet applications.
More Information
SKU 1001110
Meta Description 1001110
Part number 1001110
Pairs with 1001110
Availability date Released
Base Polarity South
Magnetization orientation Through Thickness
Coating Ni-Cu-Ni
Material NdFeB
Grade N50
Temperature Rating (C) 60
Temperature Grade Standard
Shape type Rectangle
Length (inch) 0.709
Width (inch) 0.472
Thickness (inch) 0.079
Mass (oz) 0
Length (mm) 18
Width (mm) 12
Thickness (mm) 2
Mass (g) 0
Countersink 0
Magnet Family Align
Length fractional (inch) 0.709"
Alignment Functionality Two Dimensional Alignment
Shear resistance Two Dimensional Shear
Latch Functionality 0
Spring Functionality 0
Torque Functionality 0
Magnet Symmetry 0
magnet_plate_length_range 18
Indexing Feature 0
1001110
