1001116

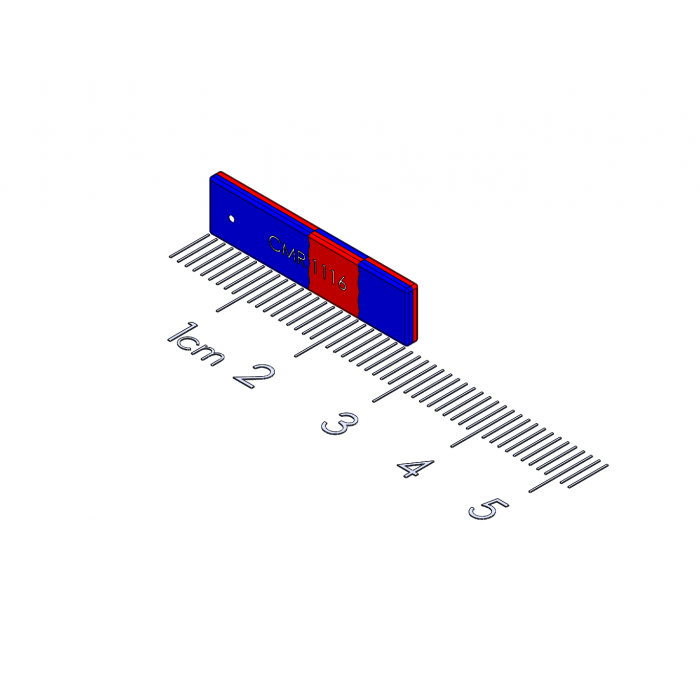

Alignment Polymagnet
This magnet pairs with itself.
This Polymagnet provides an alignment function as well as shear resistance along its long axis in magnet-to-magnet applications.
More Information
SKU 1001116
Meta Description 1001116
Part number 1001116
Pairs with 1001116
Availability date Released
Base Polarity South
Magnetization orientation Through Thickness
Coating Ni-Cu-Ni
Material NdFeB
Grade N50
Temperature Rating (C) 60
Temperature Grade Standard
Shape type Rectangle
Length (inch) 1
Width (inch) 0.25
Thickness (inch) 0.063
Mass (oz) 0.0677
Length (mm) 25.4
Width (mm) 6.35
Thickness (mm) 1.59
Mass (g) 1.92
Countersink 0
Magnet Family Align
Length fractional (inch) 1"
Alignment Functionality One Dimensional Alignment
Shear resistance One Dimensional Shear
Latch Functionality 0
Spring Functionality 0
Torque Functionality 0
Magnet Symmetry 0
magnet_plate_length_range 25.4
Indexing Feature 0
Pairs well with
1001116
