1001118
Torque Polymagnet - twist release - 90 degree
This magnet pairs with itself.

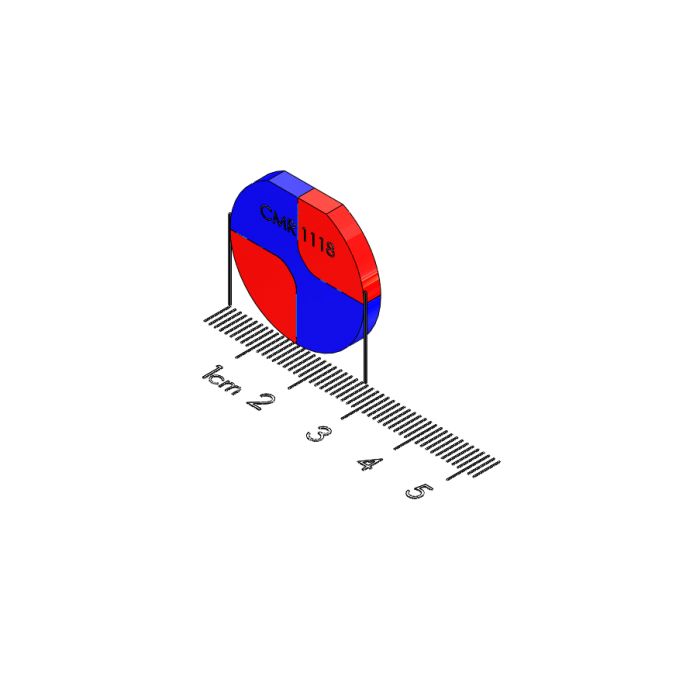

This torque Polymagnet features rotational alignment and torque resistance. A pair of these magnets exhibits a high attract force when rotationally aligned, and a high repel force when rotated 90 degrees in either direction, forming a twist-release mechanism.
More Information
SKU 1001118
Meta Description 1001118
Part number 1001118
Pairs with 1001118
Availability date Released
Base Polarity South
Magnetization orientation Through Thickness
Coating Ni-Cu-Ni
Material NdFeB
Grade N50
Temperature Rating (C) 60
Temperature Grade Standard
Shape type D-shape
Thickness (inch) 0.125
Outer diameter (inch) 1
Mass (oz) 0.4169
Thickness (mm) 3.175
Outer diameter (mm) 25.4
Mass (g) 11.82
Countersink 0
Magnet Family Torque
Length fractional (inch) 1"
Alignment Functionality Rotational Alignment
Shear resistance Rotational Shear
Latch Functionality Twist Release
Spring Functionality 0
Torque Functionality Torque Transfer
Magnet Symmetry 0
magnet_dshape_length_range 1
Indexing Feature D-shape
Pairs well with
1001118
