1002221

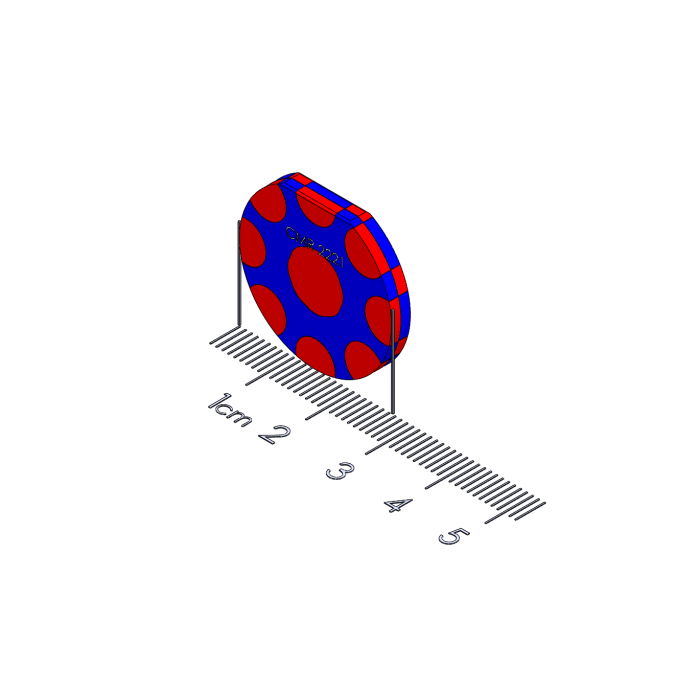

Detent Polymagnet - 8 positions
This magnet pairs with itself and the following:
Detent Polymagnets are engineered to possess a certain number of attract and repel positions ("bumps") which provide tactile feedback as the magnets are rotated.
More Information
SKU 1002221
Meta Description 1002221
Part number 1002221
Pairs with 1002221
Availability date Released
Base Polarity South
Magnetization orientation Through Thickness
Coating Ni-Cu-Ni
Material NdFeB
Grade N50
Temperature Rating (C) 60
Temperature Grade Standard
Shape type D-shape
Length (inch) 1
Thickness (inch) 0.125
Outer diameter (inch) 1
Mass (oz) 0.4169
Length (mm) 25.4
Thickness (mm) 3.175
Outer diameter (mm) 25.4
Mass (g) 11.82
Countersink 0
Magnet Family Torque
Length fractional (inch) 1"
Alignment Functionality Radial Alignment
Shear resistance 0
Latch Functionality 0
Spring Functionality 0
Torque Functionality Torque Transfer
Magnet Symmetry 0
magnet_dshape_length_range 1
Indexing Feature 0
Pairs well with
1002221
