Torque Polymagnet - twist release - 45 degree
This magnet pairs with itself and the following:

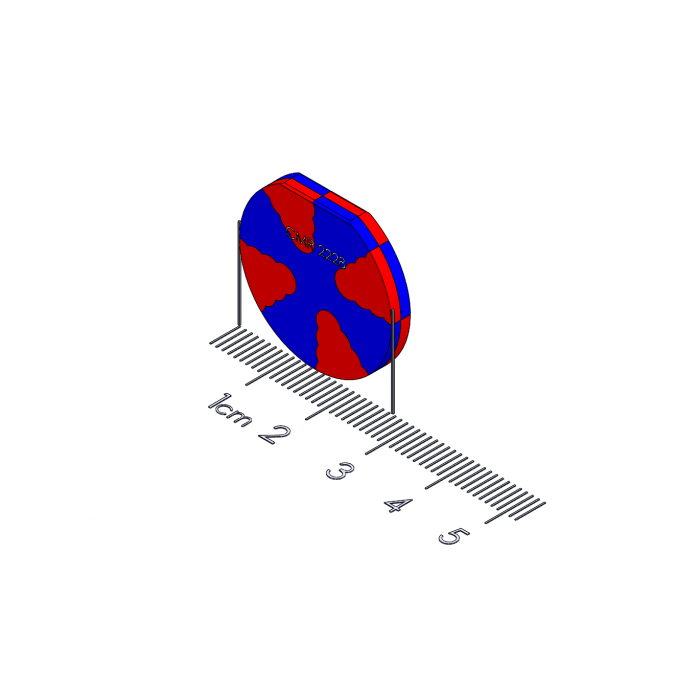

This torque Polymagnet features rotational alignment and torque resistance. A pair of these magnets exhibits a high attract force when rotationally aligned, and a high repel force when rotated 45 degrees in either direction, forming a twist-release mechanism.
More Information
SKU 1002228
Meta Description 1002228
Part number 1002228
Pairs with 1002228
Availability date Released
Base Polarity South
Magnetization orientation Through Thickness
Coating Ni-Cu-Ni
Material NdFeB
Grade N50
Temperature Rating (C) 60
Temperature Grade Standard
Shape type D-shape
Length (inch) 1
Thickness (inch) 0.125
Outer diameter (inch) 1
Mass (oz) 0.4169
Length (mm) 25.4
Thickness (mm) 3.175
Outer diameter (mm) 25.4
Mass (g) 11.82
Countersink 0
Magnet Family Torque
Length fractional (inch) 1"
Alignment Functionality 0
Shear resistance 0
Latch Functionality 0
Spring Functionality 0
Torque Functionality 0
Magnet Symmetry 0
magnet_dshape_length_range 1
Indexing Feature D-shape
Pairs well with
1002228
