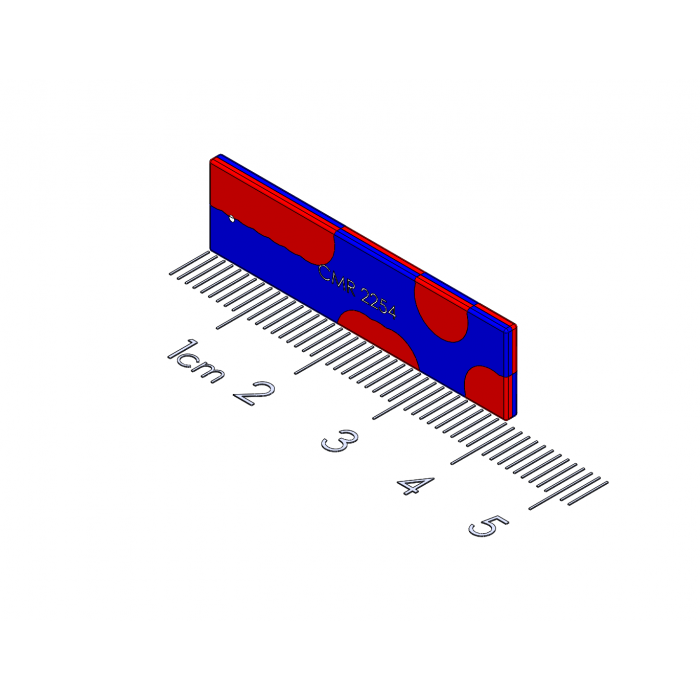

Alignment Polymagnet - 2D
This magnet pairs with itself.
This Polymagnet provides a two-dimensional alignment function as well as shear resistance along its length and width in magnet-to-magnet applications. It is optimized for a 2mm design gap.
More Information
SKU 1002254
Meta Description 1002254
Part number 1002254
Pairs with 1002254
Availability date Released
Base Polarity South
Magnetization orientation Through Thickness
Coating Ni-Cu-Ni
Material NdFeB
Grade N50
Temperature Rating (C) 60
Temperature Grade Standard
Shape type Rectangle
Length (inch) 1.5
Width (inch) 0.4
Thickness (inch) 0.062
Mass (oz) 0.164
Length (mm) 38.1
Width (mm) 10.16
Thickness (mm) 1.587
Mass (g) 4.65
Countersink 0
Magnet Family Align
Length fractional (inch) 1 1/2"
Alignment Functionality Two Dimensional Alignment
Shear resistance Two Dimensional Shear Resistance
Latch Functionality 0
Spring Functionality 0
Torque Functionality 0
Magnet Symmetry 0
magnet_plate_length_range 38.1
Indexing Feature 0
Pairs well with
1002254
