1002634
Black Ni-Cu-Ni
Conventional
High strength conventional neodymium magnet.

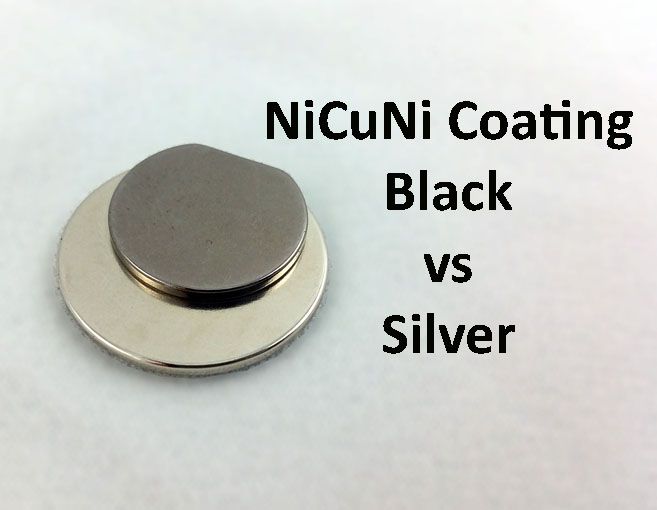

This is our only catalog magnet available standard in shiny black Ni-Cu-Ni coating and is used as an example of available coatings. A black dye is added to the coating to provide a subtle difference, this is not fully / dark black like an epoxy coating would provide.
View Datasheet
More Information
SKU: 1002634
Meta Description: 1002634
Part number : 1002634
Pairs with: 1002634
Availability date: Released
Base Polarity: South
Magnetization orientation:Through Thickness
Coating: Black Ni-Cu-Ni
Material: NdFeB
Grade: N50
Temperature Rating (C): 60
Temperature Grade: Standard
Dimension tolerance: 0.127
Shape type: D-Shape
Length (inch): 0.75
Thickness (inch):0.0625
Outer diameter (inch): 0.75
Mass (oz): 02325
Length (mm): 19.05
Thickness (mm): 1.5875
Countersink: 0
Magnet Family: Conventional
Length fractional (inch): 3/4"
Outer diameter fractional (Inch): 3/4"
Thickness fractional (inch): 1/16"
Shear resistance:0
Latch Functionality:0
Spring Functionality:0
Torque Functionality:0
Magnet Symmetry:0
magnet_shipping_weight:0.05
magnet_dshape_innerdiameter 1
magnet_dshape_length_range1
magnet_dshape_od_range 19.05
magnet_dshape_thickness_mm 1.5875
magnet_dshape_width_range 1
Indexing Feature:0
Pairs well with
1002634
