1002190

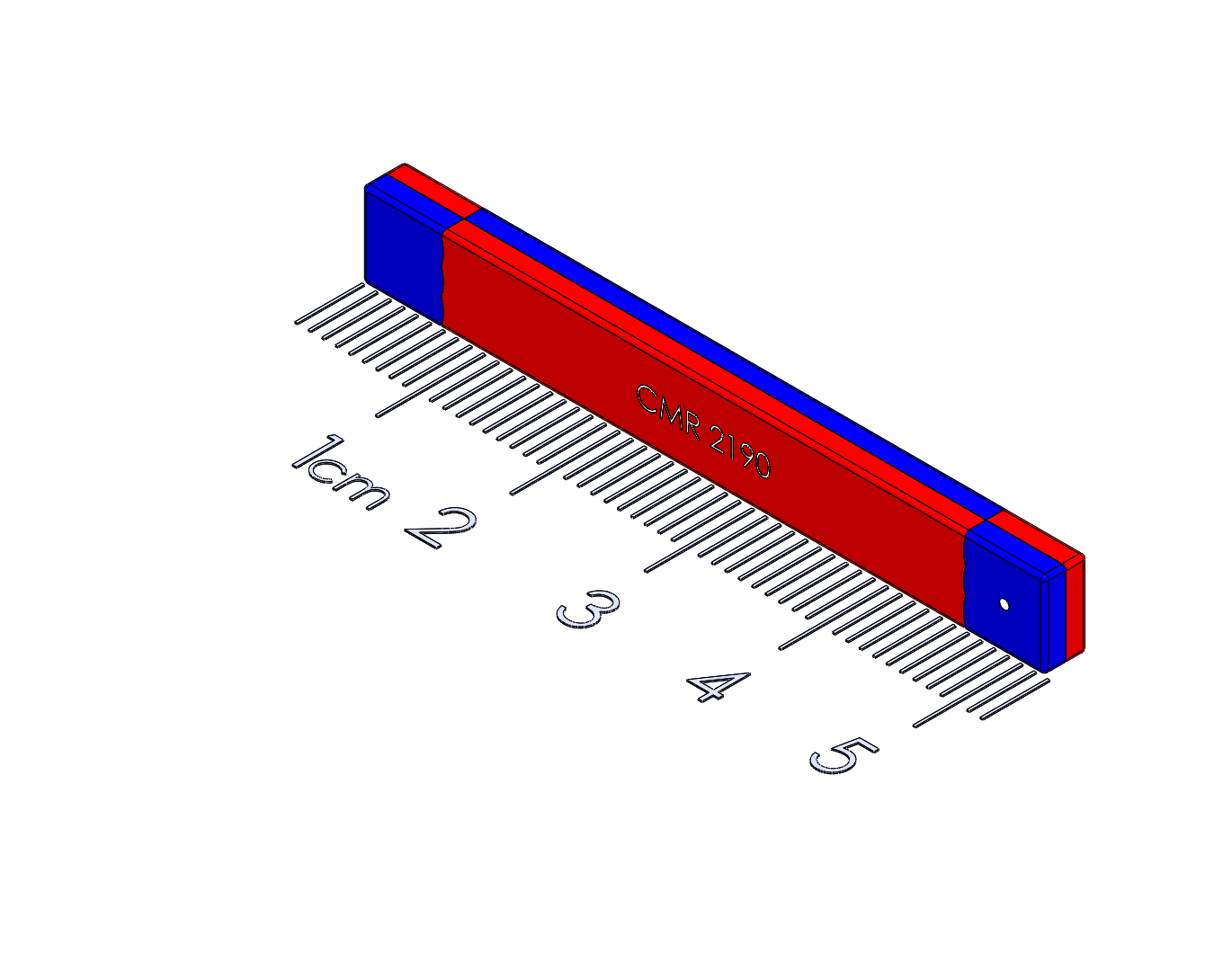

Sliding Spring Latch Polymagnet - B
This magnet must be paired with the following: 1002189
Sliding Spring Latch Polymagnets are designed to possess attach and repel functionality in certain positions. These Polymagnets provide a strong attach force when in an offset position and repel force when the magnets are aligned. These magnets must be constrained to achieve the desired functionality.
More Information
SKU: 1002190
Meta Description: 1002190
Part number : 1002190
Pairs with: 1002189
Availability date: Released
Base Polarity: North
Magnetization orientation: Through Thickness
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N50
Temperature Rating (C): 60
Temperature Grade: Standard
Dimension tolerance: 0.127
Shape type: Rectangle
Length (inch): 2
Width (inch): 0.25
Thickness (inch): 0.125
Mass (oz): 0.2709
Length (mm): 50.8
Width (mm): 6.35
Thickness (mm): 3.175
Mass (g): 7.68
Countersink:0
Magnet Family: Latch
Length fractional (inch): 2"
Width fractional (inch): 1/4"
peak force: 14.59
Thickness fractional (inch): 1/8"
Shear resistance: One Dimensional Shear Resistance
Latch Functionality: 0
Spring Functionality: 0
Torque Functionality: 0
Magnet Symmetry: 0
magnet_plate_od_range: 1
magnet_shipping_weight: 0.05
magnet_plate_length_range: 50.8
magnet_plate_width_range: 6.35
magnet_plate_thickness_mm: 3.175
magnet_plate_inner diameter: 1
Indexing Feature: 0
