1000391
Attach Polymagnet - long range - centering
This magnet pairs with itself and the following:
This Polymagnet provides a high holding force in magnet to magnet and magnet to steel applications, at design gaps greater than 0.75 mm. It also provides radial shear resistance in magnet to magnet applications.
More Information
SKU: 1000391
Meta Description: 1000391
Part number: 1000391
Pairs with: 1000391
Availability date: Released
Base Polarity: North
Magnetization orientation: Axial
Coating: Ni-Cu-Ni
Material: NdFeB
Grade: N40
Temperature Rating (C): 80
Temperature Grade: Standard

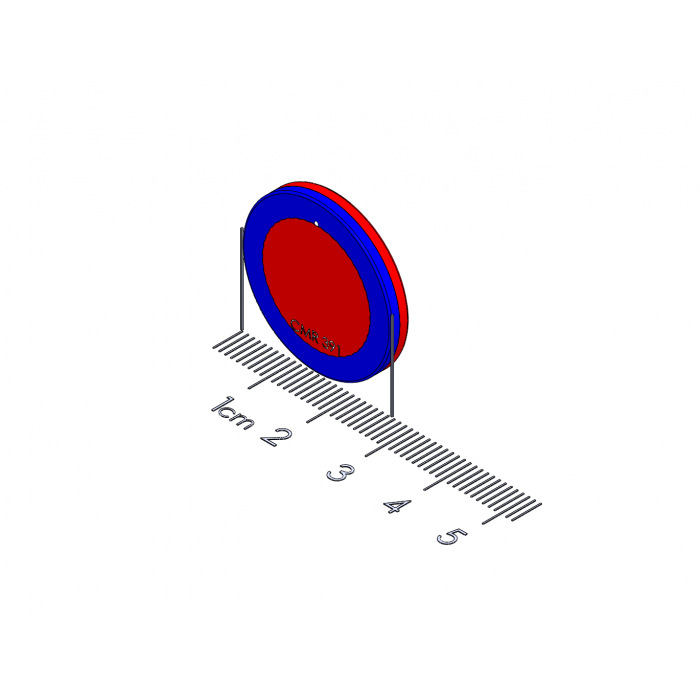

Shape type: Disc
Thickness (inch): 0.125
Outer diameter (inch): 1
Mass (oz): 0.4208
Thickness (mm): 3.175
Outer diameter (mm): 25.4
Mass (g): 11.93
Countersink: 0
Magnet Family: Attach
Alignment Functionality: Radial Alignment
Shear resistance: Radial Shear
Latch Functionality: 0
Spring Functionality: 0
Torque Functionality: 0
Magnet Symmetry: Radial
magnet_disc_od_range: 25.4
magnet_disc_length_range: 1
Indexing Feature: 0
Pairs well with
1000391
