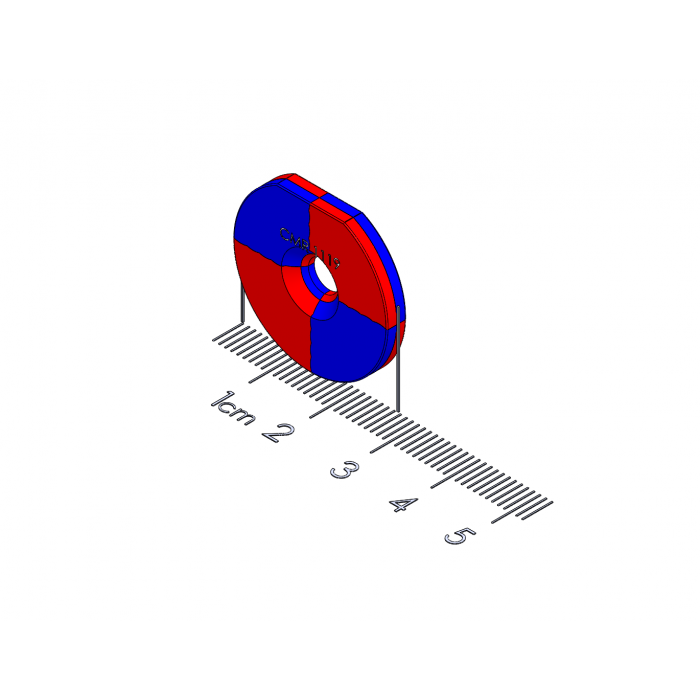

Torque Polymagnet - twist release - 90 degree - countersink
This magnet pairs with itself
This torque Polymagnet features rotational alignment and torque resistance. A pair of these magnets exhibits a high attract force when rotationally aligned, and a high repel force when rotated 90 degrees in either direction, forming a twist-release mechanism. It features a countersink for easy mounting with the indicated screw size.
More Information
SKU 1001119
Meta Description 1001119
Part number 1001119
Pairs with 1001119
Availability date Released
Base Polarity North
Magnetization orientation Through Thickness
Coating Ni-Cu-Ni
Material NdFeB
Grade N50
Temperature Rating (C) 60
Temperature Grade Standard
Shape type D-shape
Length (inch) 1
Thickness (inch) 0.125
Outer diameter (inch) 1
Mass (oz) 0
Length (mm) 25.4
Thickness (mm) 3.175
Outer diameter (mm) 25.4
Mass (g) 0
Countersink M4
Magnet Family Torque
Length fractional (inch) 1"
Alignment Functionality Rotational Alignment
Shear resistance Rotational Shear
Latch Functionality Twist Release
Spring Functionality 0
Torque Functionality Torque Transfer
Magnet Symmetry 0
magnet_dshape_length_range 1
Indexing Feature D-shape
